homepage > products > grow lightinghlt0p06 series(720w)
product overview

horticultural lamp

hltop03 delivers in full spectrums including royal blue ( 5% ), deep red ( 25% )

model:hlt0p06 series(720w) light source:led power:720w installation:suspended ip rating:ip65

product features

· samsung full spectrum led chip, white light 660nm red light ir, for hemp grow.

· high quality ce or ul certified built-in driver with dimming knob and rj11 port.

· foldable design for small package to save shipping cost.

· extruded aluminum design for good heat sink to extend the lifespan of luminaire.

· easy to install and operate, instant start, no flickering, no humming, long service

life, increase hemp production.

· ce and rohs certified.


installation

· disconnect the power to the luminaire.

· the installation is as easy as hanging the supplied v hooks on a bar (not included).

· any adjustable ratchet hanger, chain, etc can be connected on the v hooks.

· hang the fixture from a strong cord or chain from both ends. note that each hook should be able to withstand a rated weight of at least 50-lbs. please

hang the hook provided by the drive on the fixing rod, and then connect the wiring between the lamp and the drive.

· route the electrical cord up and away from the light to another hook (not provided) and down the wall to the drive.

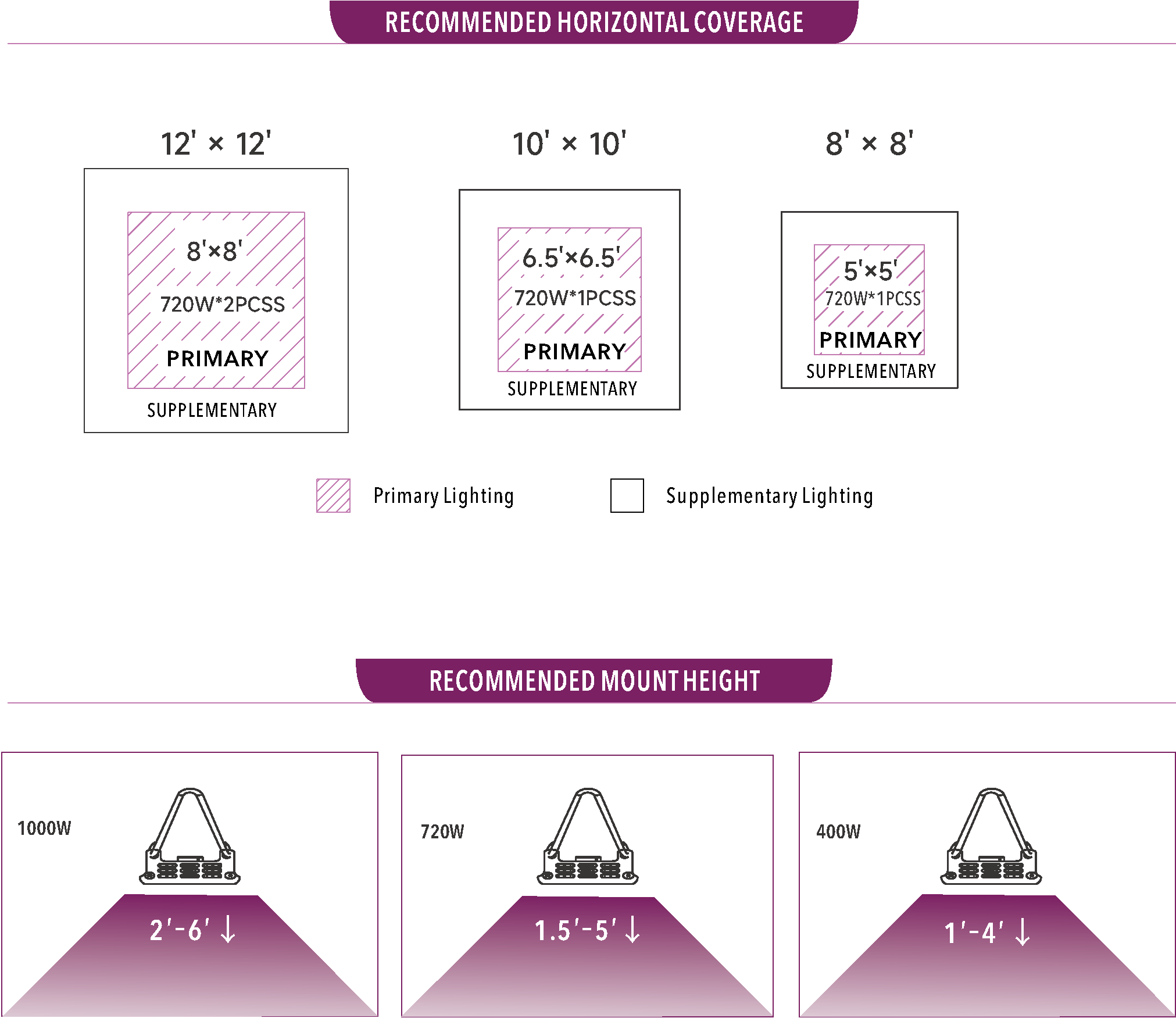

· it is recommended to adjust the distance between the luminaire and crops in different grow stages for maximum yield.steel suspension wires with snap

hooks and wire clips are optional for connection.


application

· indoorhemp / cannabis / marijuana grow.

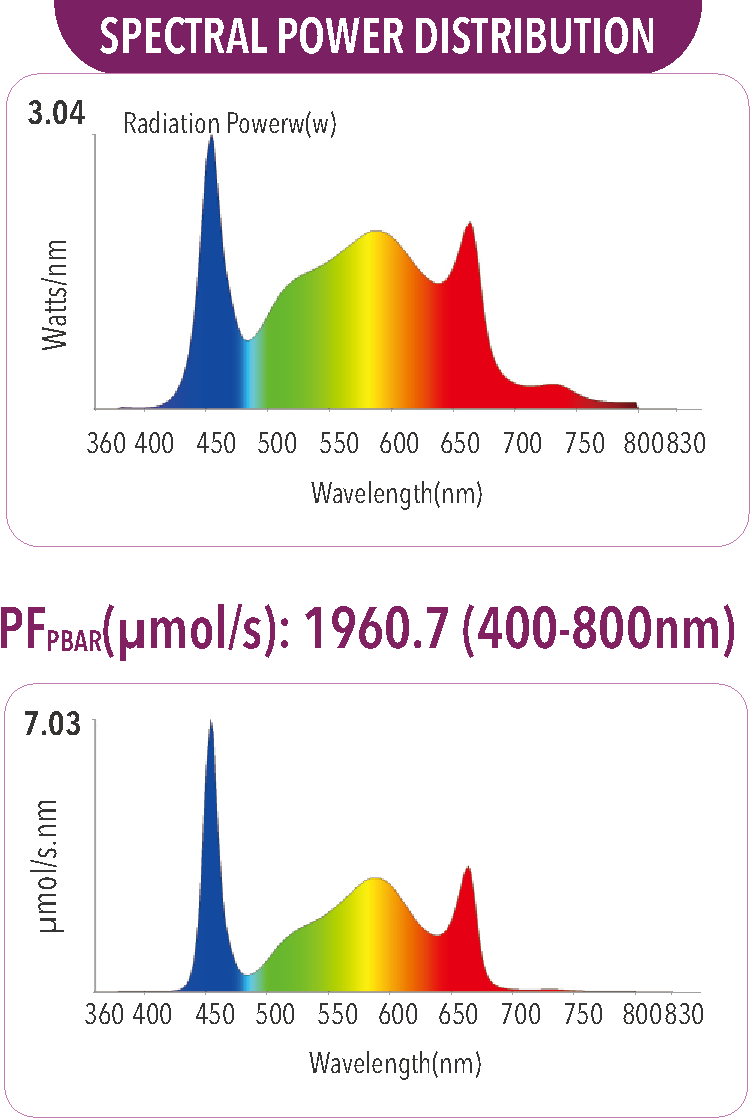

spectral power distribution


资源 1.png

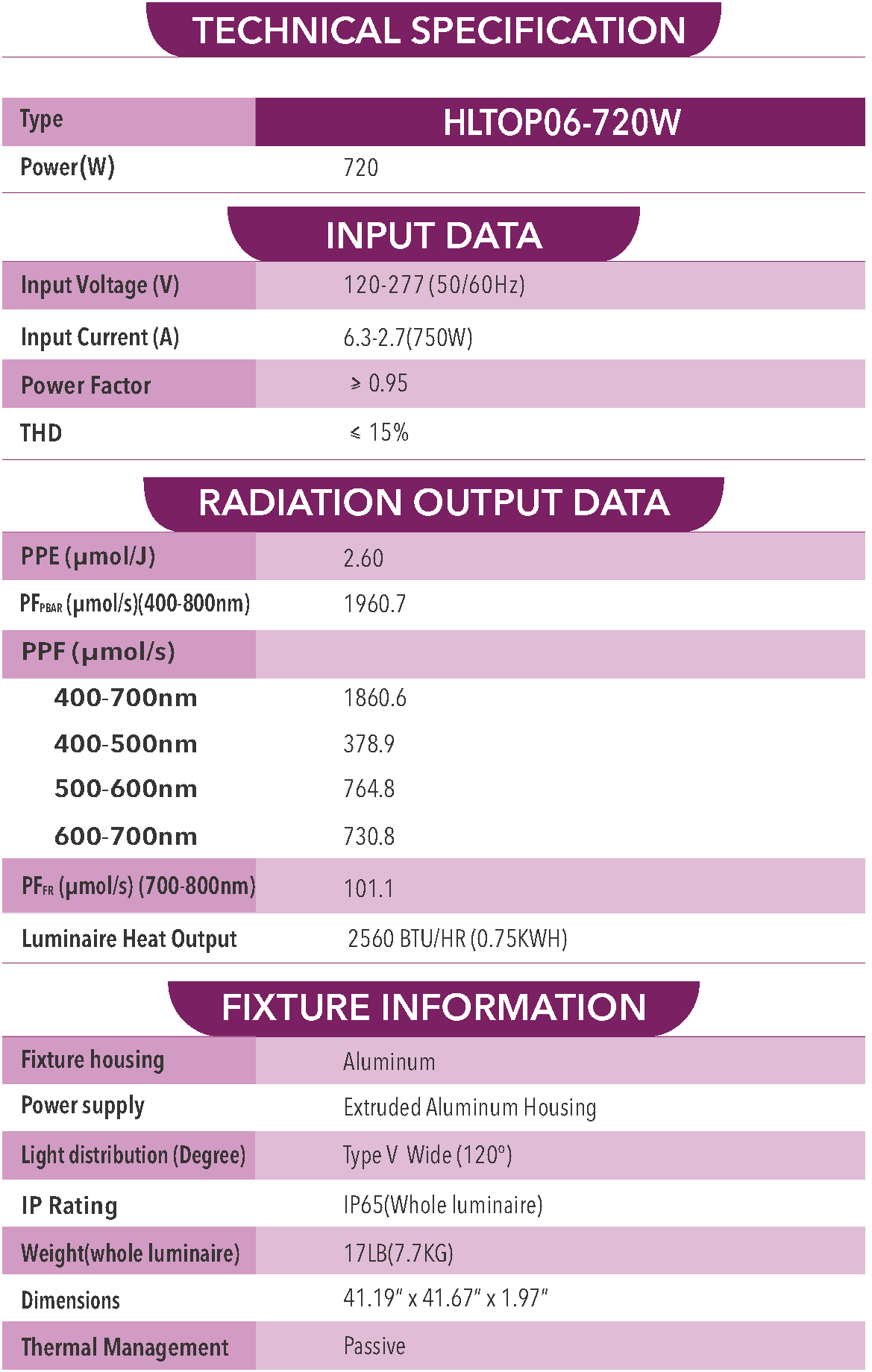

lamp information


资源 2.png

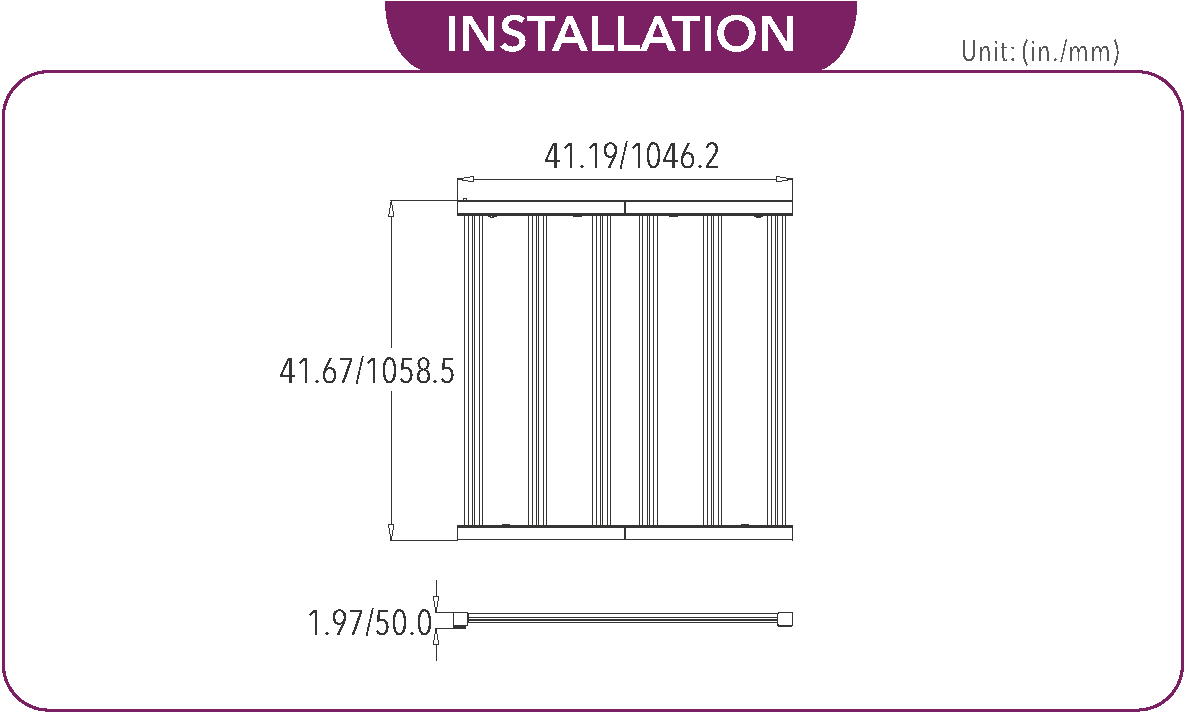

dimensional drawing


资源 3.png


lamp information


资源 4.png

资源 5.png


资源 7.png
