product features
· 120w 4ft led linear fixture with high ppe efficiency.
· samsung full spectrum white light, 660nm plant red light, and 730nm infrared for
enhanced yield.
· premium dimmable ul-listed driver supporting wide input voltage of ac120-277v.
· suitable for downward lighting configurations.
· end-to-end cable connectivity supporting up to 20 fixtures.
· uniform light output distribution .
· 0-10v dimming capability via rj11 connection.
· ip65 rated for water and dust resistance.
· easy and quick installation.
· 5-year manufacturer's warranty.
installation
· disconnect the power to the luminaire.

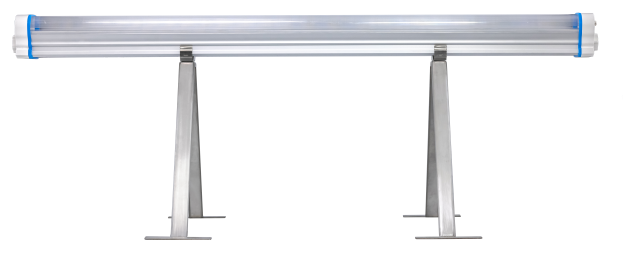

· take out and locate two stands. install the clips at top of both stands.
· put the fixture on the two stands and use the clips to hold the fixture,
the space is suggested as 80cm between two stands.
· connect the daisy chain cord on both sides the fixtures, the max
series connection quantities can be up to 20 pcs fixtures as a group
at 277v.
· connect the power cable with the first luminaire in the group if the
rj11 cables are connected within the group.
· an external dimmer is optional to control or dim the luminaire in the
group
application
· indoor grow for hemp,cannabis,marijuana;hobby&commercial grow.

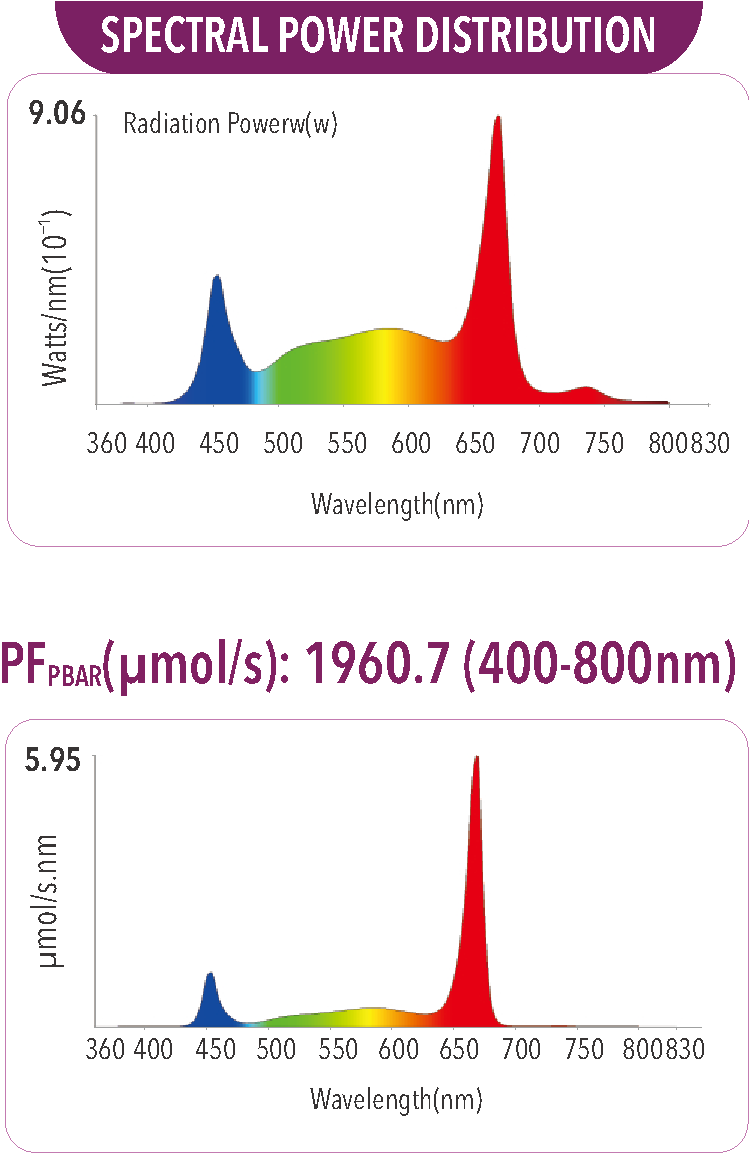

spectral power distribution

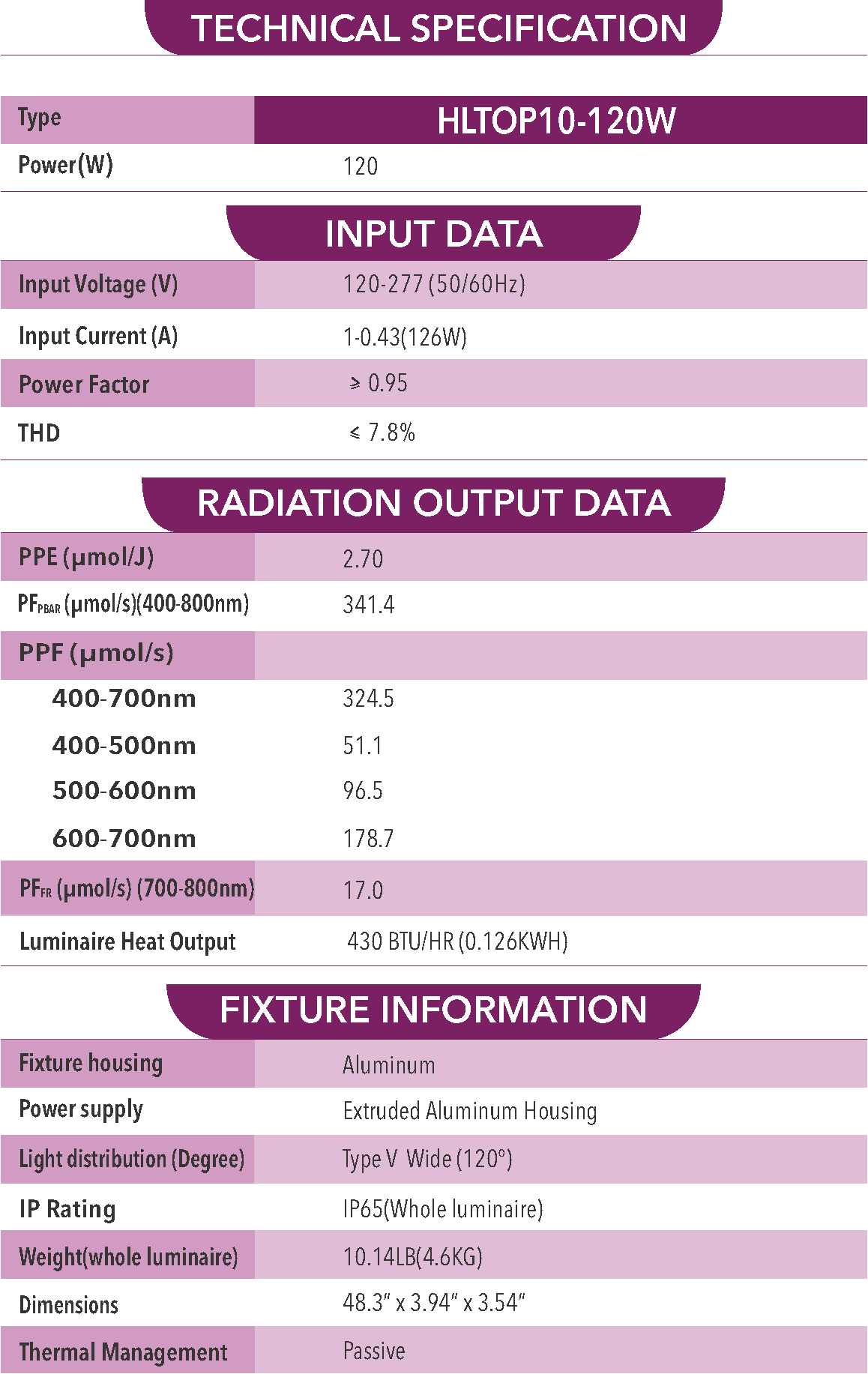

lamp information

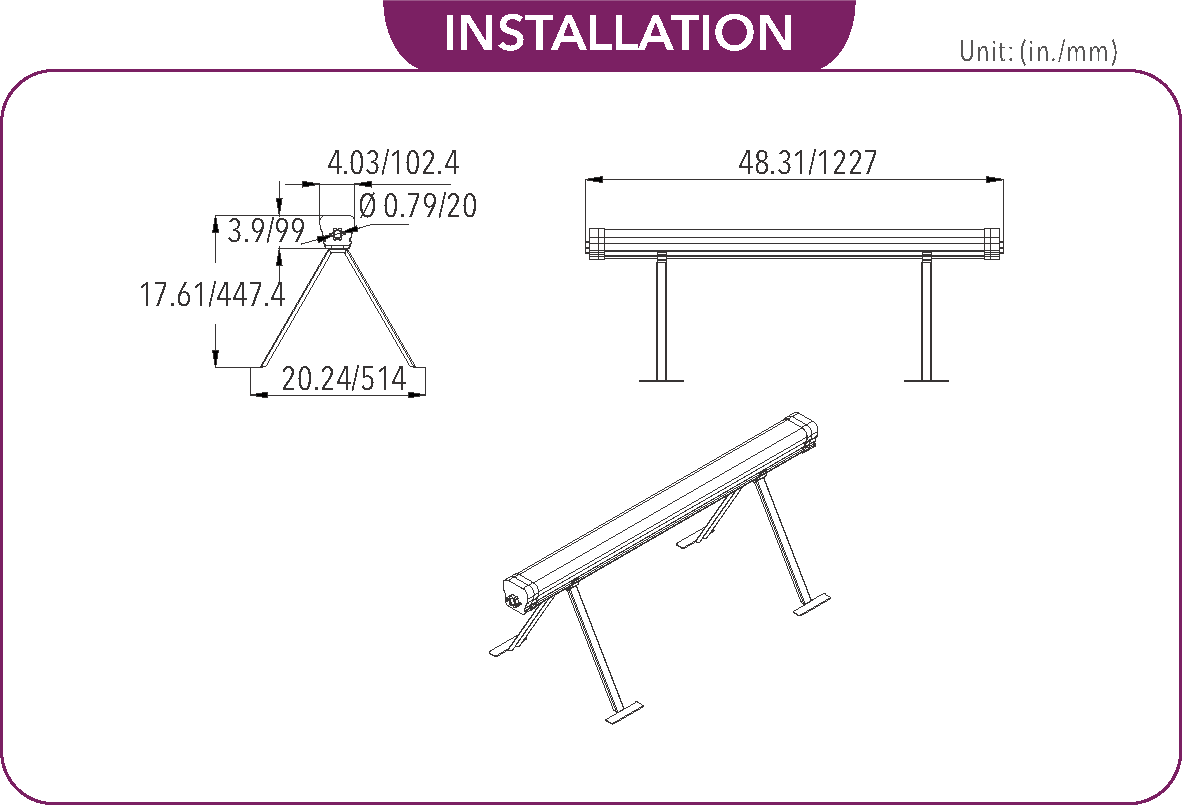

dimensional drawing
lamp information
