product features

· samsung full spectrum led chip, white light 660nm red light ir, for hemp grow.

· extruded aluminum design for good heat sink to extend the lifespan of luminaire.

· full cycle spectrum, no need change luminaire in whole grow phases of plants.

· high quality ce or ul certified built-in driver with dimming knob and rj11 port.

· easy to install and operate, instant start, no flickering, no humming, long service life, increase hemp production.

· optional 0-10v analogue dimming to adjust the output intensity to meet various grow phase of plants (option: mobile phone bluetooth dimming).

installation

· make sure the power cut.

· the installation is as easy as hanging the supplied v hooks on a bar (not included).

· any adjustable ratchet hanger, chain, etc can be connected on the v hooks.

· hang the fixture from a strong cord or chain from both ends. note that each hook should be able to withstand a rated weight of at least 50-lbs. please hang the hook provided by the drive on the fixing rod, and then connect the wiring between the lamp and the drive.

· route the electrical cord up and away from the light to another hook (not provided) and down the wall to the drive.

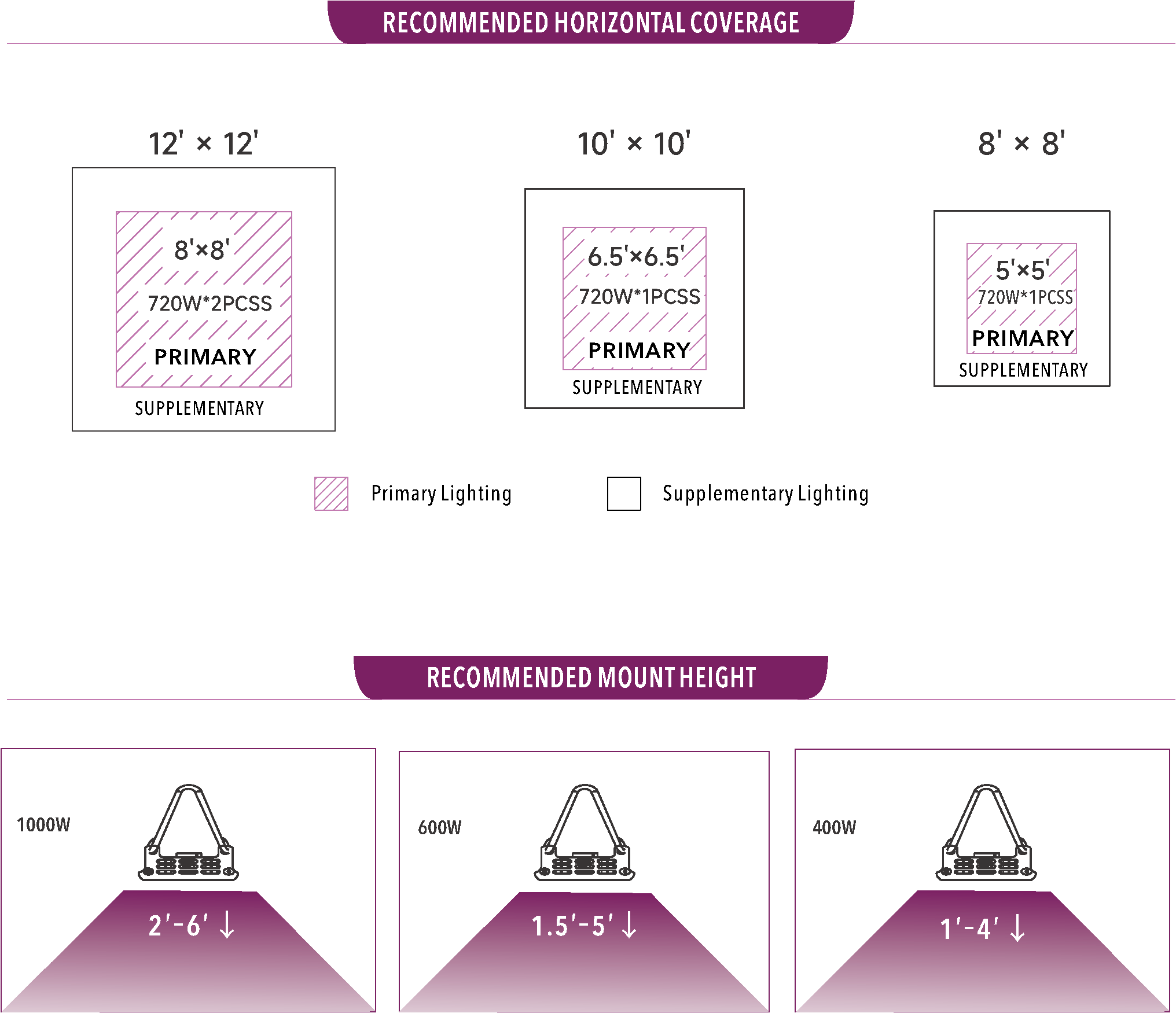

· it is recommended to adjust the distance between the luminaire and crops in different grow stages for maximum yield.steel suspension wires with snap hooks and wire clips are optional for connection.

application

· hobby grow room, commercial grow house, grow tent.

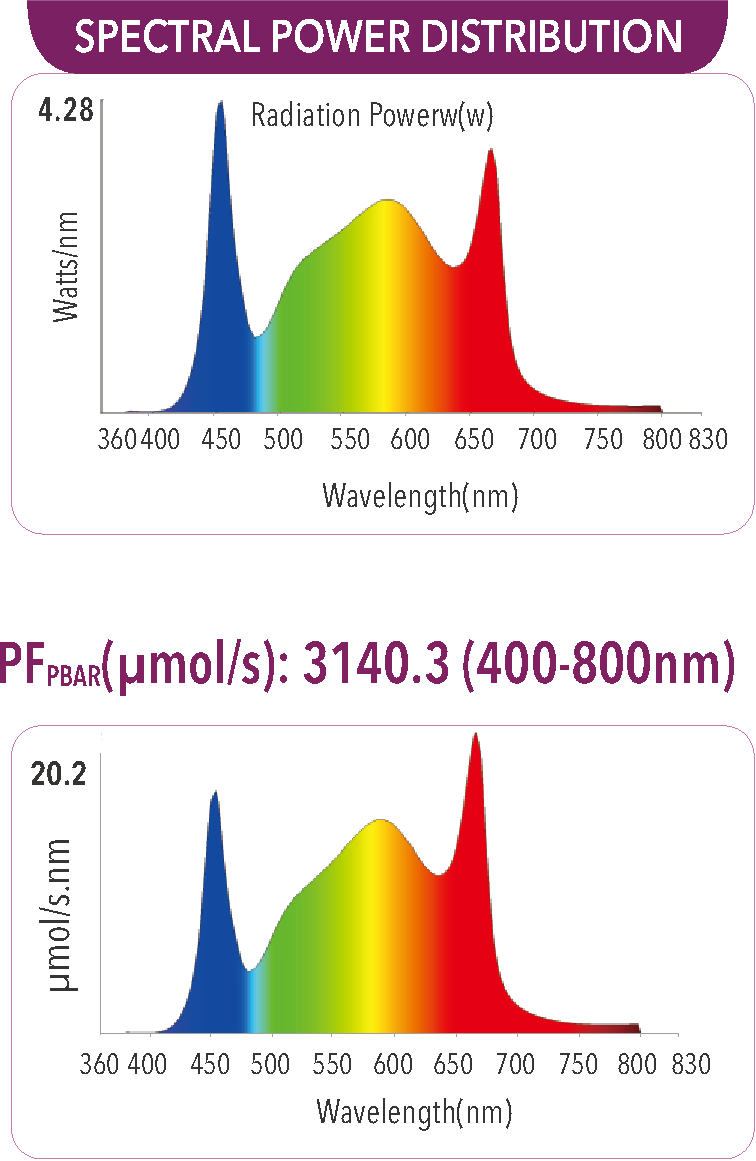

spectral power distribution

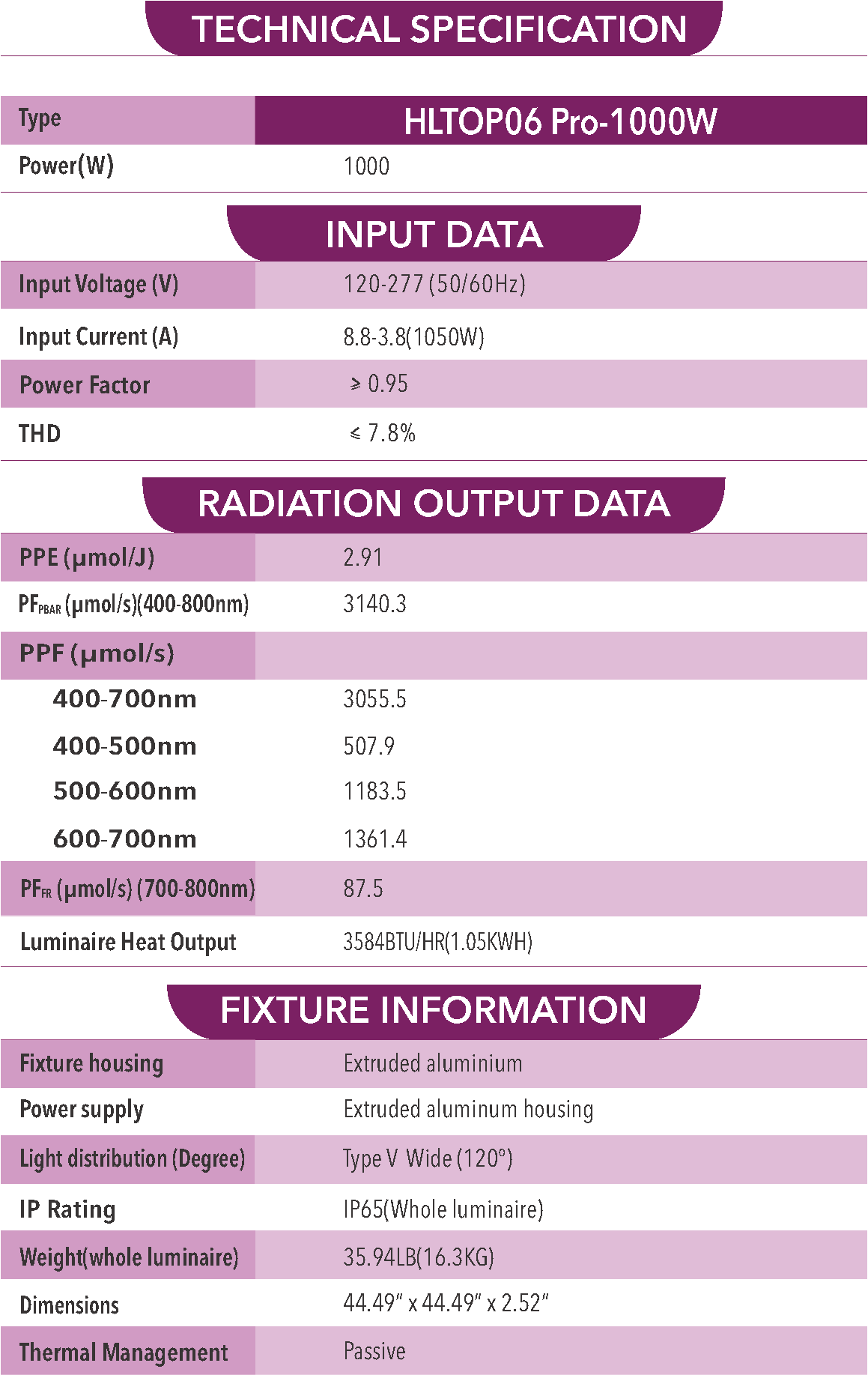

lamp information

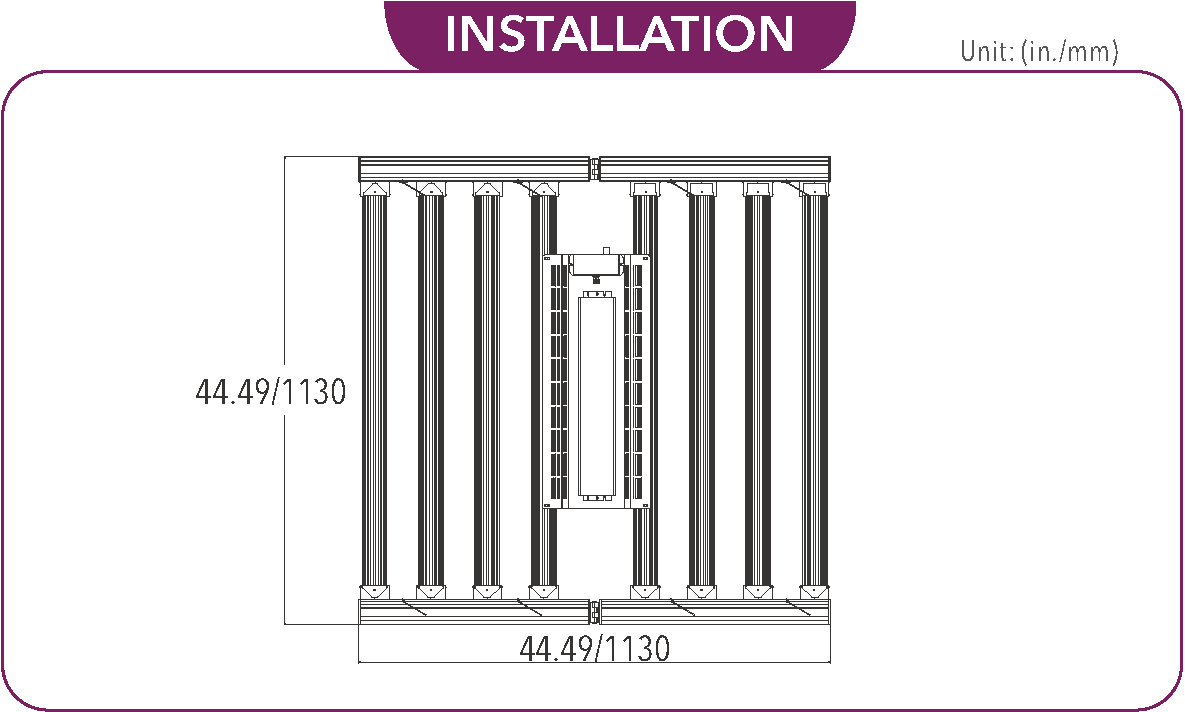

dimensional drawing

lamp information
